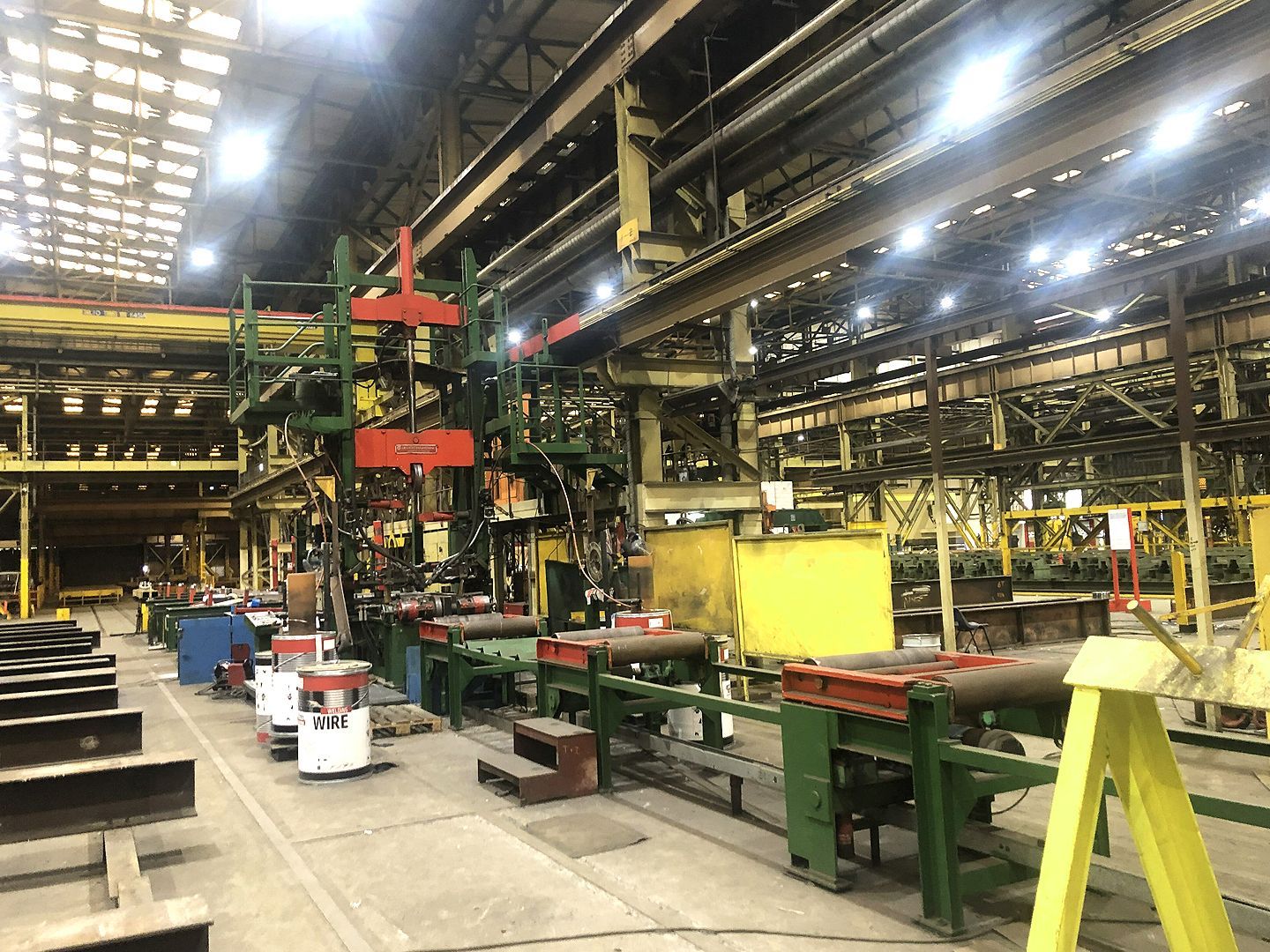

CORIMPEX BEAM WELDING MACHINE TYPE BWM TC 2000-1000 3-15 machine
Category: BEAM WELDING MACHINE
Year:
TBC
Machine Code:
STK 1740
Main Features:
- WEB : Height 200 -:- 2000mm (flanges included). Thickness 5 -:- 25mm
- FLANGE : Width 150 -1000mm Thickness 8-40mm
- Max. post-deforming thickness = 35 mm on 1000 mm flange width
- MAX. BEAM WEIGHT : 1000 Kg / metre
- MIN. BEAM LENGTH : 3000 mm
- MAX. BEAM LENGTH : 15.000 mm
- HYDRAULIC CYLINDER : 1800 mm
- TACK-WELDING : Not needed.
- POWERED ROLLS IN THE : speed = 12 m/min. ENTRY/EXIT CONVEYORS PISTON WORKING : 6/9 Tons
- TRAVEL SPEED RANGE : 0,2 -:- 2,1 m/min WELDING PROCESS : submerged Arc Tandem

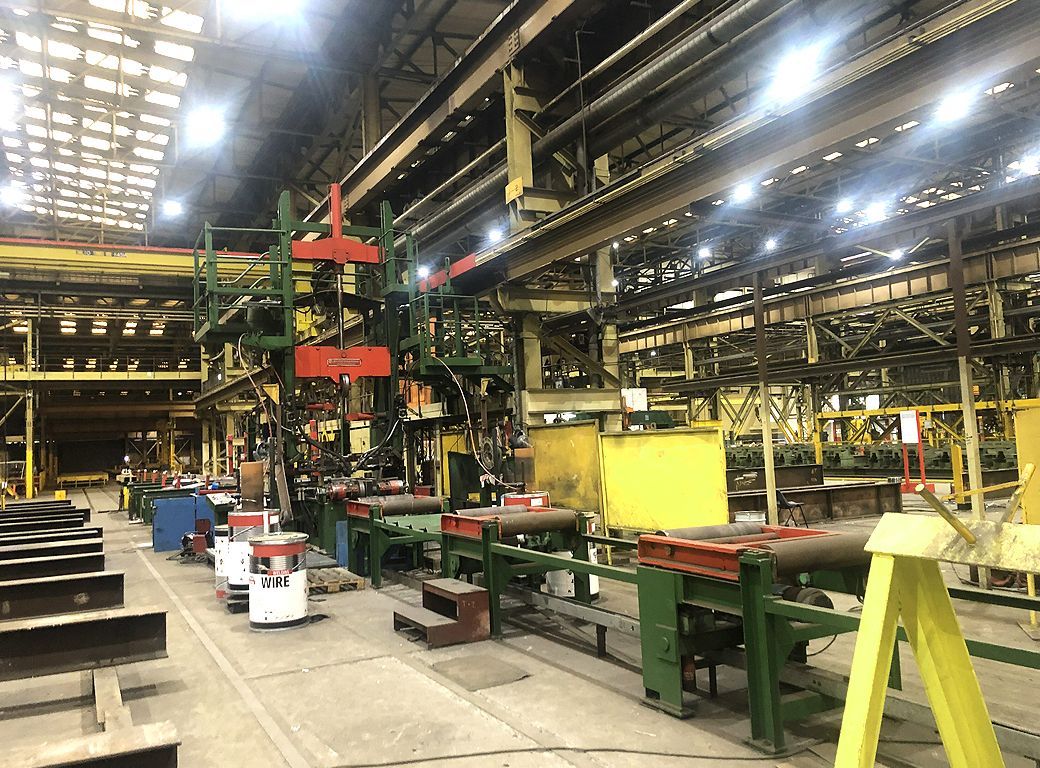

Machine images
